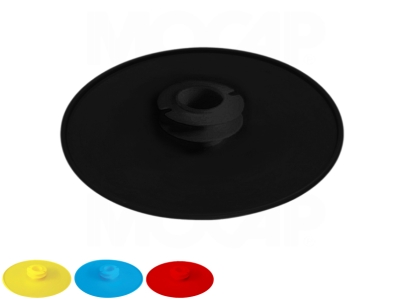

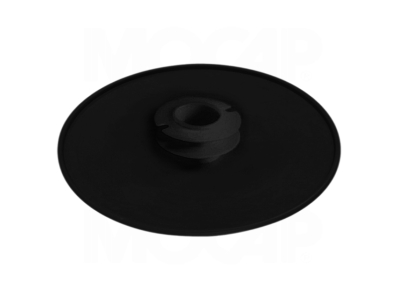

TP100 FLANGE CAP
FLANGE PROTECTOR
![]()
TP100 FLANGE CAP
FLANGE PROTECTOR
![]()
TP100 FLANGE CAP
FLANGE PROTECTOR
![]()
TP100 FLANGE CAP
FLANGE PROTECTOR
![]()
TP100 FLANGE CAP
FLANGE PROTECTOR

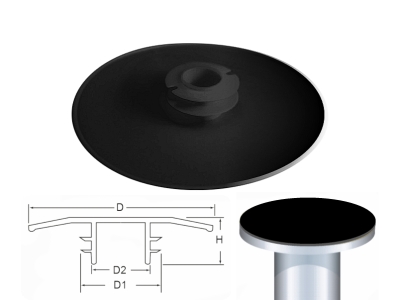

| DIMENSIONS |
d2 (mm) |
| PRODUCT TYPE |
NOM |
A(mm) |
B(mm) |
C(mm) |
Min. |
Max. |
CODE |
| FLANGE CAP |
1/2" DN15 |
21,3 |
7 |
90 |
9 |
16 |
TP100-1/2" |
| FLANGE CAP |
3/4" DN20 |
26,7 |
11,9 |
100 |
14 |
25 |
TP100-3/4" |
| FLANGE CAP |
1" DN25 |
33,4 |
16,5 |
110 |
19 |
31 |
TP100-1" |
| FLANGE CAP |
1 1/4 DN32 |
42,2 |
22 |
136 |
24 |
40 |
TP100-1 1/4" |
| FLANGE CAP |
1 1/2 DN40 |
48,3 |
28,8 |
146 |
31 |
46 |
TP100-1 1/2" |
| FLANGE CAP |
2" DN50 |
60,3 |
37,7 |
160 |
40 |
58 |
TP100-2" |
| FLANGE CAP |
2 1/2 DN65 |
73 |
48,5 |
180 |
51 |
71 |
TP100-2 1/2" |
| FLANGE CAP |
3" DN80 |
88,9 |
60,5 |
196 |
63 |
87 |
TP100-3" |
| FLANGE CAP |
4" DN100 |
114,3 |
80 |
216 |
82 |
112 |
TP100-4" |
| FLANGE CAP |
5" DN125 |
135 |
102 |
246 |
104 |
133 |
TP100-5" |
| FLANGE CAP |
6" DN150 |
168,3 |
127,5 |
280 |
153 |
166 |
TP100-6" |
| FLANGE CAP |
8" DN200 |
219,1 |
184 |
336 |
186 |
217 |
TP100-8" |
| FLANGE CAP |
10" DN250 |
273 |
229 |
378 |
231 |
271 |
TP100-10" |
| FLANGE CAP |
12" DN300 |
323,8 |
282 |
450 |
284 |
322 |
TP100-12" |
| FLANGE CAP |
14" DN350 |
355,6 |
309 |
500 |
311 |
353 |
TP100-14" |
| FLANGE CAP |
16" DN400 |
406,4 |
383 |
550 |
384 |
404 |
TP100.16" |
